Eskimo ES-AF-09HRFN8-I V1 9000 BTU Air Condition

Cooling Energy Class:         A++
Heating Energy Class (Warm Zone):      A+++
Heating Energy Class (Mid-Range):       A+
Outdoor Unit Code:         ES-AF-09HFN8-O V1
Operating Voltage V-Hz-Ph:      220V-240V,1Ph,50Hz
Cooling Capacity Btu/h:       9000（3500~11000）
Thermal Efficiency Btu/h:      10000（2800~11500）
Cooling Power Supply W:       799 (100~1240)
Heating Power Supply W:        789 (120~1200)
Cooling Operating Current A:      3.47 (0.4~5.4)
Heating Operating Current A:          3.43 (0.5~5.2)
Seasonal Energy Efficiency Ratio (SEER) Cooling:        7
Seasonal Coefficient of Performance (SCOP) Heating (Average):      4.1
Seasonal Coefficient of Performance (SCOP) Heating (Heat):        5.1
Indoor Unit Noise Level dB(A) (H/M/W/D):         38/31/25/21
Indoor Unit Sound Power dB(A):          50
Outdoor Unit Sound Power in dB(A):       60
Air Flow m³/h (H/M/F) Internal:       434.8/333/259
Air Flow m³/h (H) External:          1750
Indoor Unit Dimensions (H x W x D) mm:       285x715x194
Outdoor Unit Dimensions (H x W x D) mm:       495x720x270
Net Weight of Indoor Unit Kg:      7
Net Weight of Outdoor Unit Kg:      23.2
Liquid/Gas Pipe Diameter mm:        Φ6.35(1/4")/Φ9.52/(3/8")
Maximum Piping Length m:          25
Maximum Elevation Difference m:          10
Indoor Temperature Operating Range (Cooling) ℃:         17~32
Outdoor Temperature Operating Range (Cooling) ℃:        -15~50
Indoor Temperature Operating Range (Heating) ℃:          0~30
Outdoor Temperature Operating Range (Heating) ℃:        -15~30
Wi-Fi function:       Standard
Coolant:         R32

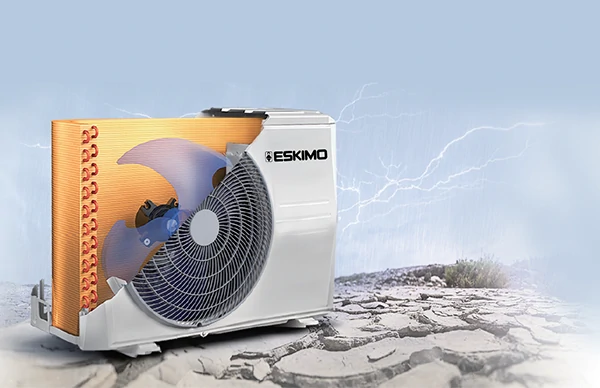

Golden Tech Protection


Golden Tech fin protection is a hydrofoil coating that prevents the growth and spread of bacteria from the surfaces of the outdoor element. In addition, it improves heat dissipation characteristics and reduces defrosting time. The unique anti-corrosion gold surface protection of the aluminum fins makes them resistant to corrosive factors, such as rain, sea breeze, etc.

Wi-Fi Standard Mode


Turn on your air conditioner and adjust its temperature remotely, through the smart application, while also checking your bills, so that you can save energy, intelligently.

Activated Carbon Filter


The Activated Carbon filter eliminates harmful particles and microorganisms, ensuring a clean atmosphere.

Warranty


10 Years, based on warranty terms
